Port Forward Remote Desktop On Billion 7800VDPX

First you will need to login into your modem in my case 192.168.2.254

Make your way to Configuration/Security/IP Filtering/incoming

In my case I have 3 computers I want to access.

Each computer has a Static IP

Computer 1 is 192.168.2.88
Computer 1 is 192.168.2.77
Computer 1 is 192.168.2.66

RDP-K is the setup with the default Remote Desktop port of 3389, as you can see in the above picture port 3389 this will go to IP address 192.168.2.88.

Now you will need to configure the Virtual Server, see below for configuration

From a remote PC obviously run Remote Desktop Connection

To get to Computer ,1 its as simple as entering your WAN IP

If you don't know your wan IP the go to : http://www.whatsmyip.org/

For help see: http://lozaelec.blogspot.com.au/2011/07/what-is-my-wan-ip-address.html


To get to Computer 1, enter your wan Ip : EG 111.111.111.111

To get to Computer 2, enter your wan:3390 : EG 111.111.111.111:3390

To get to Computer 3, enter your wan:3391 : EG 111.111.111.111:3391

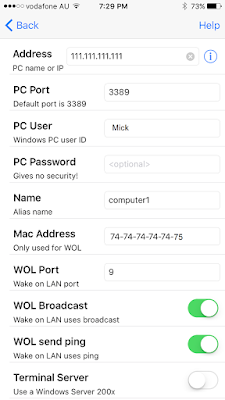

Using say iPhone RDP configure screen

Computer 1
